NEW E-MU Sound Expansion ROM – Balma’s Shock Treatment

Mauricio Balma and haxorhax have joined forces to introduce the new 32MB Shock Treatment expansion ROM – almost 20 years since the last E-MU expansion was released.  This expansion fuses modern electronic samples with experimental Command Station programming using many of the cutting edge tips and tricks provided by Balma himself over these decades.

Release Date Set:   3/17/2024

Shock Treatment Store Page

I should be able to ship within a week of ordering. For my sanity, please allow up to 2 weeks to ship!

Here are the glossy brochure details:


Electronic, Experimental, Fizmo’ish (ie. hold one button and sound evolves over time)

Hardware Support:

Command Station optimized – Proteus 2K and EOS sampler compatible

ROM Breakdown:

512 Presets
634 Instruments (100 Drum Kits)
100 Arpeggios
640 Riffs

Legend: ARP (arpeggiator), BAS (bass), CHR (chorus), DRO (drone), GTR (guitar), HAT/KIC/SNR/PRC/TOM (drums), SCW (single cycle), SFX (sound fx), PAD (pad), NOI (noise), LED (lead), VOX (vocal), WND (wind), SYN (synth), KIT (drum kit), LNK (linked presets *special*)

Demo links:

Preset demonstrations will be provided. Demonstrations using Shock Treatment have been provided on Balma’s Soundcloud page linked below:

prodatum resurrected

*** NEW version created (v2.1.2) ***

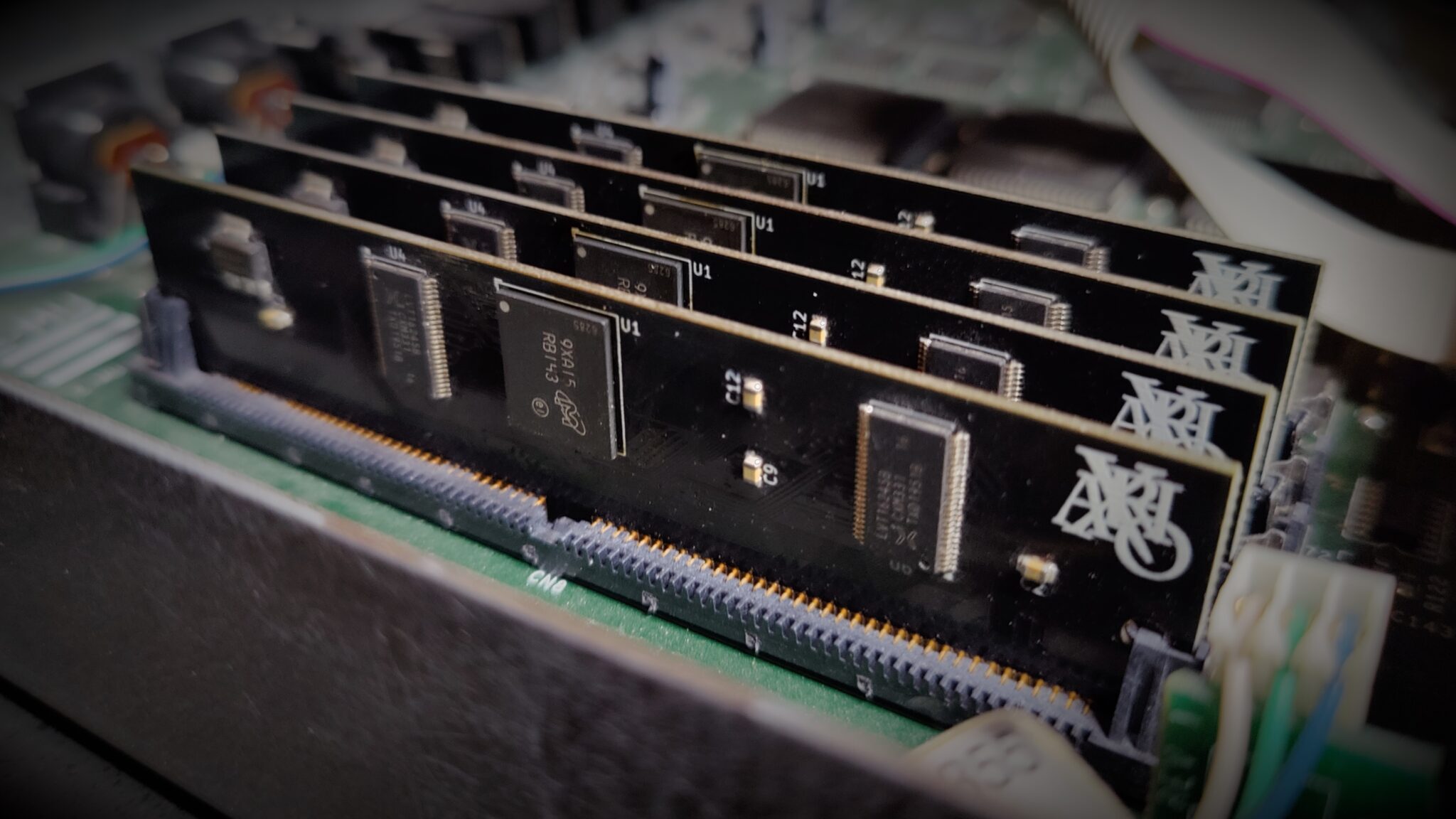

Promising custom E-MU SIMMs is one thing, but the logistics of getting there is complicated. One of the decisions I have helped move this along was using prodatum for the effort of preset creation. There were work flow issues with how it saved off the data, as well as how it handled cross device sysex files. Well, I cracked open the source code and added some functions that will be needed to support the upcoming development. In short, you should be able to save the entire machine state in sysex with some newly added export / import capabilities.

Export / Import Capabilities:

  • Export one or many presets for any given rom or user banks
  • Import one or many presets into user banks (automatically handling the conversion between command station, proteus, and audity 2000)
  • Export one or many arp patterns for any given rom
  • Import one or many arp patterns into user arp pattern storage
  • Export current user setup
  • Import a specified user setup

I won’t go into them in detail, but I made a write-up on the wiki with all the features here:

Features Wiki

Portable builds (64bit – Win10, Linux, MacOS) available to download here:

prodatum Releases

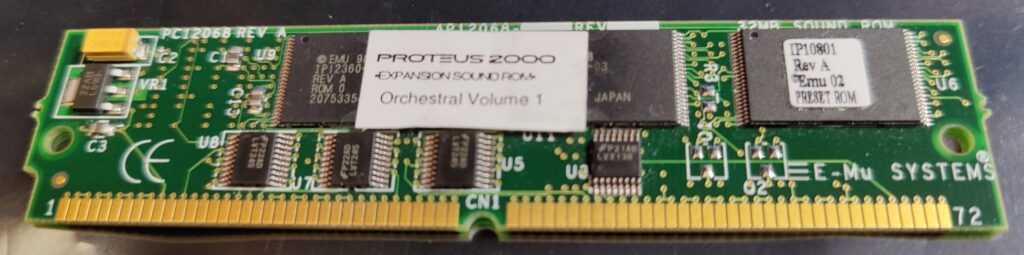

EMU Sound ROM Cloning

EMU ROM Information
EMU ROM Clones
